ZADA

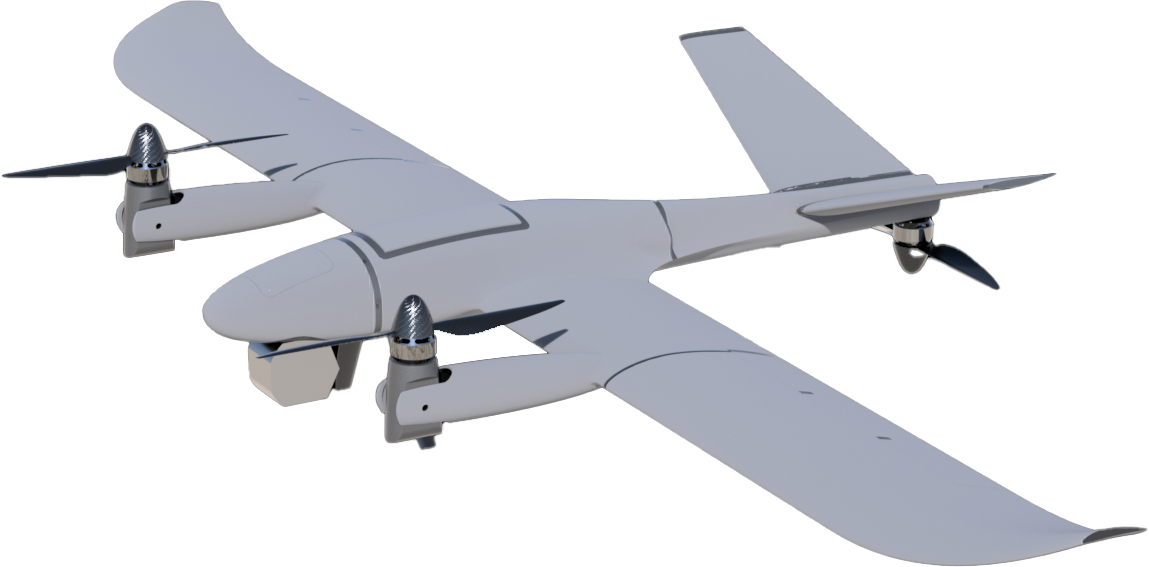

Vertical Take-off and Landing (VTOL) Unmanned Aerial Vehicle

ZADA uav is able to make vertical take-off and landing without need of any runway or catapult system. With its special design structure, ZADA uav can be deployed and put in operation mode easily. With its customizable features, ZADA uav can be operated for various purposes.




120 Minute

Maximum Flight Endurence

3500 Meters

Operation Celling

1.2 Kg

Maximum Payload Weight

8 Kg

Maximum Take-Off Weight

45 Km

Communication Range

Day/Night

Flight

Propulsion

Electric Engine & Li-Po Battery

45 Km

Maximum Range

Mid Range VTOL Fixed Wing UAS

  • Take-Off Weight

    8 kilogram

  • Max. Flight Time

    120 Minutes

  • Command and Control Range

    25 km optional 50 km

  • Cruise Speed

    15 m/s – 20 m/s

  • Wind Tolerance (ground)

    10 m/s

  • Operating Temperature Range

    -10c to 50 c

  • Transport Case Dimension

    850 mm x 560mm x 355 mm

Sensors

  • EO Zoom

    6X Optical Zoom

  • EO Resolution

    4K @30fps and 1080p 30fps

  • IR Zoom

    2x Digital Zoom

  • IR Resolution

    640X512

  • Data Rate

    5 Mb/s (H264)

  • Power Consumption

    12v / 24v

  • Misc.

    Gimbal Movement Optional Object Tracking Image Stabilization

Common Attributes

Ground Controller

AI Capabilities

Sensor Capabilities

Break boundaries with UAVs! Contact us for more information.
